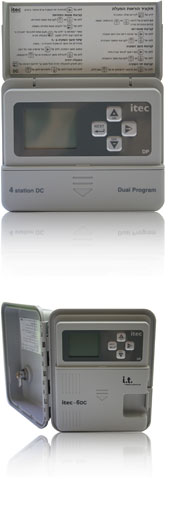

4,6,8 station controller.
Two independent programs.
Water budgeting from 10-200%.
Manual operation per station or semi-auto operation for each program.
Watering time - from 1 min. up to 599 min.in 1 min. increments.
3 start times per program.
7 days "select-A-day" or "skip days" interval from 1-14 days.
Master valve/pump start.
Rain-Off function.
Program erase - total reset.
Use one 9 volt Alkaline battery to operate the controller.
Output to solenoid is 12 volt Low battery indication.
Operates 9 volt valves.
Operates latching solenoid rated 9 volt, 2 wires, 2 or 3 ways solenoids.
When battry is connected, controller starts an "OFF" command to all valves to set them to close position.
Wire distance from controller to valve:
Up to 80 m - wire diameter 0.5 mm
Up to 150 m - wire diameter 0.8 mm.
Battery compartment, located on the right side of the controller, inside a sliding drawer, with "push to lock" and "push to unlock" mechanism.
Operates all 3 ways, 2 wire 6-20 volt pulse solenoid.
